Concord CXA 100/H

Concord CXA 100/H

concord-cxa-100-h

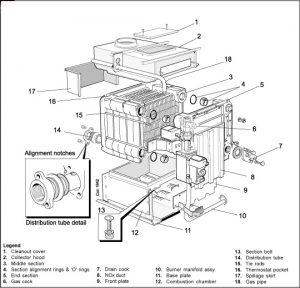

IDPart NumberPart DescriptionNotesPurchase
12.4150 096Boiler body insulation CXA
23150 156LH main burner Worgas 0.087.757
24150 152Centre & RH main burners Worgas 0.087.756
26013 179Main burner injectors Size 5.3mm CXA
27077 105Pilot burner - HONEYWELL Q 349 A1067 complete with injector
28004 545Pilot burner injector - HONEYWELL 45900421-011
29a154 810Gas control valve - HONEYWELL V4601 AB 1034
29b111 869Gas control valve - HONEYWELL VR4605 AB 1019 CXA
29c112 431Gas valve plugs and lead assy CXA
29d139 269Gas valve plugs and lead assy CXA
32154 967Ignition electrode and H.T. lead assy
33a154 818Flame sensing electrode
33b154 854Boiler status neons Burner on
33c154 855Boiler status neons Overheat
33d154 855Boiler status neons Lockout
37154 816Electronic thermostat sensor & lead assembly
38154 850Thermostat potentiometer assembly
39170 859Thermostat knob
40155 791Overheat thermostat
41157 152Control box assembly complete
42154 813Printed circuit board S4561B1054
43154 815Printed circuit board W4115A1020
48111 653Right hand casing side panel - white stove enamel CXA
49111 653Left hand casing side panel - white stove enamel CXA
50111 298Casing top panel - white stove enamel CXA
51171 842Casing lower front panel - white stove enamel c/w lighting instructions
52154 846Casing upper front control panel (less controls)
53157 394Casing assembly complete - white stove enamel CXA
55155 269Reset Switch Assembly
